CSV - Comma Separated File Configuration
Using a CSV-import tool can be a challenge, but also necessary in some cases.
It can be used to import a large amount of order or Shipment data from a CSV-file, by mapping each column to the right field in Webshipper.
1. Import and/or Export settings
1. Import and/or Export settings
Let me show you how to get started.
If you go to Settings > CSV Import > Create CSV Configuration.

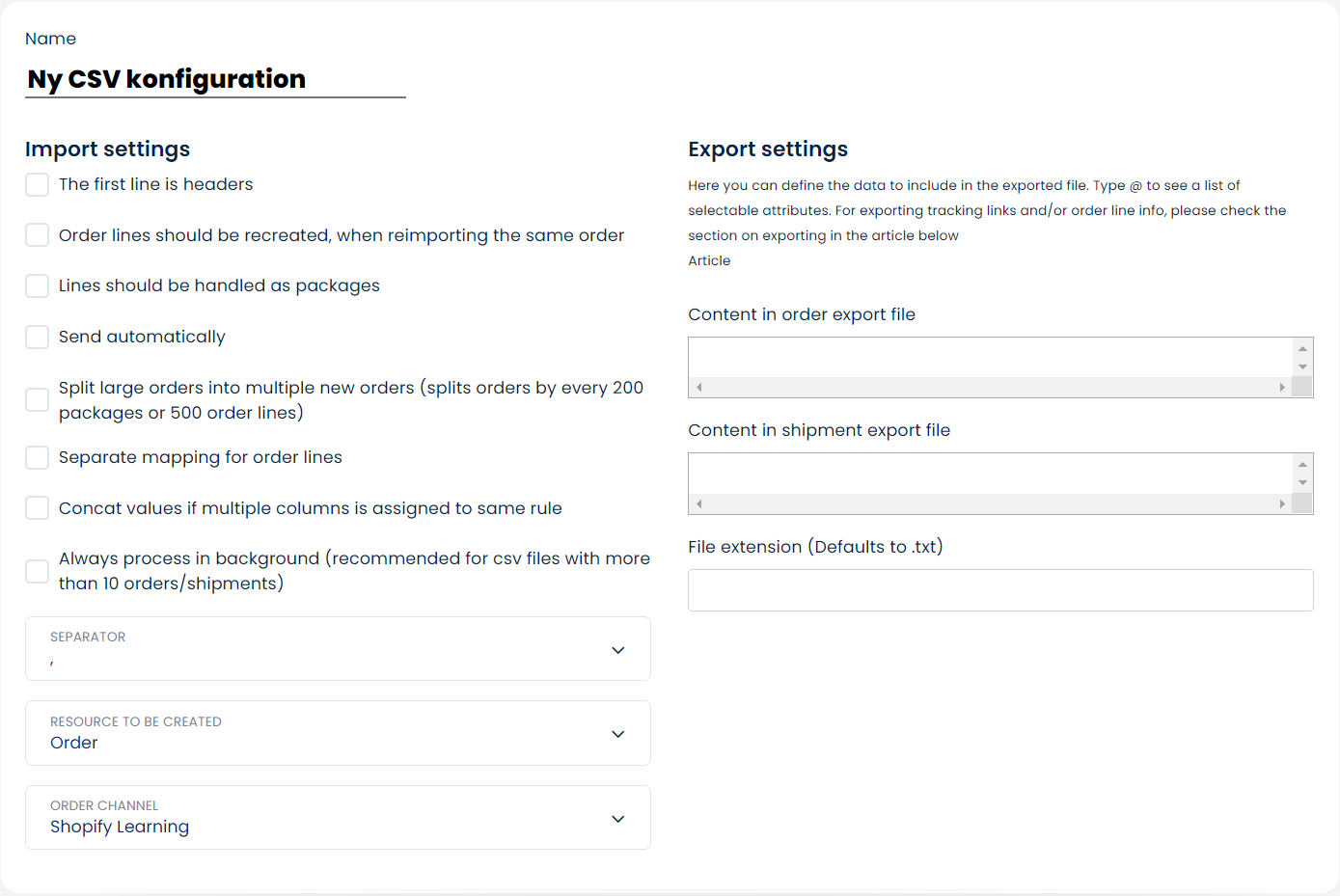

You should see something like the example below. Fill in the fields as desired before scrolling down to the configuration.
In the left side column, you can specify Import settings and in the right side column, you can specify any Export settings you would like. This, however, requires the CSV import tool installed locally.
2. Configuration
Once the settings are in place you can begin your configuration.
The line called "Example Input" is the one we will be using the most.
Here you need to indicate the headlines of each column in your CSV file, separated by a "," .
Once that is made, you need to map each headline to the right field in Webshipper. You do this by clicking Add rule on each line in the configuration. If you do not add a rule, the system will ignore that given line.

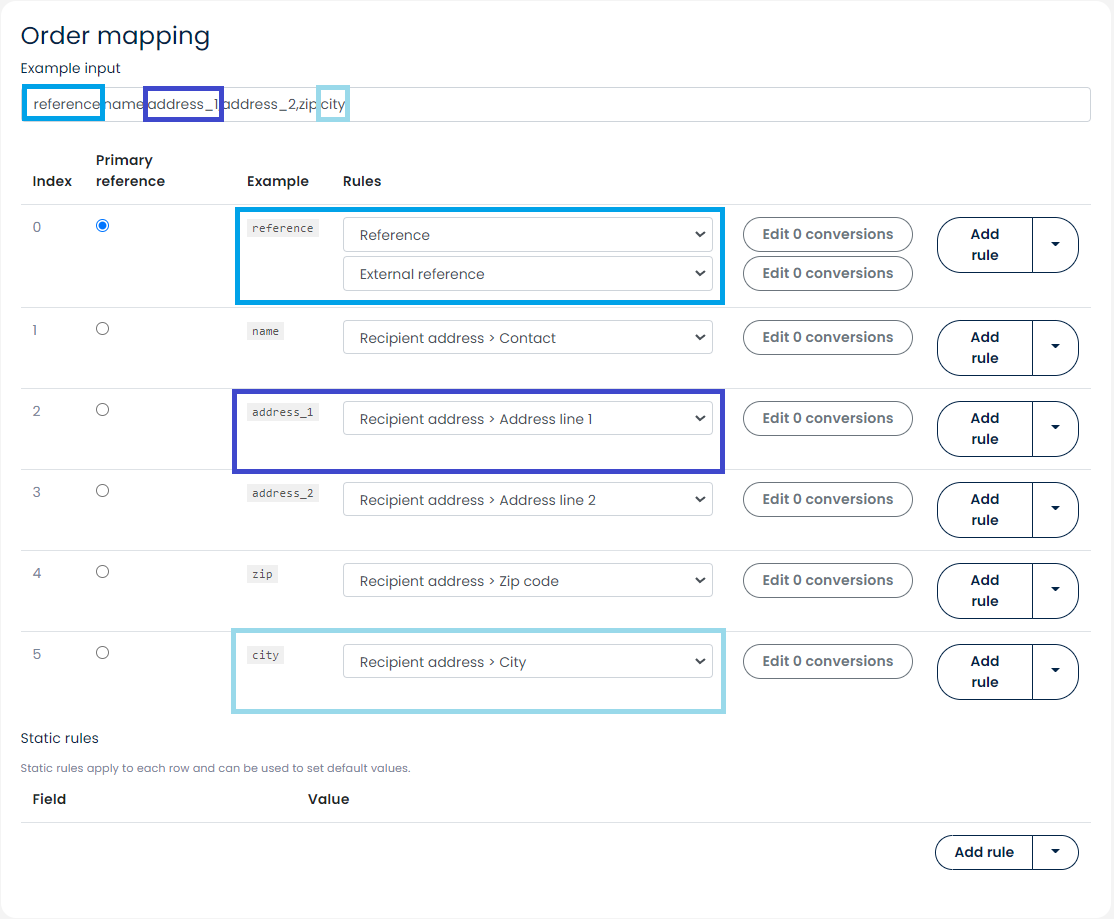

In the end, it should look something similar to this:

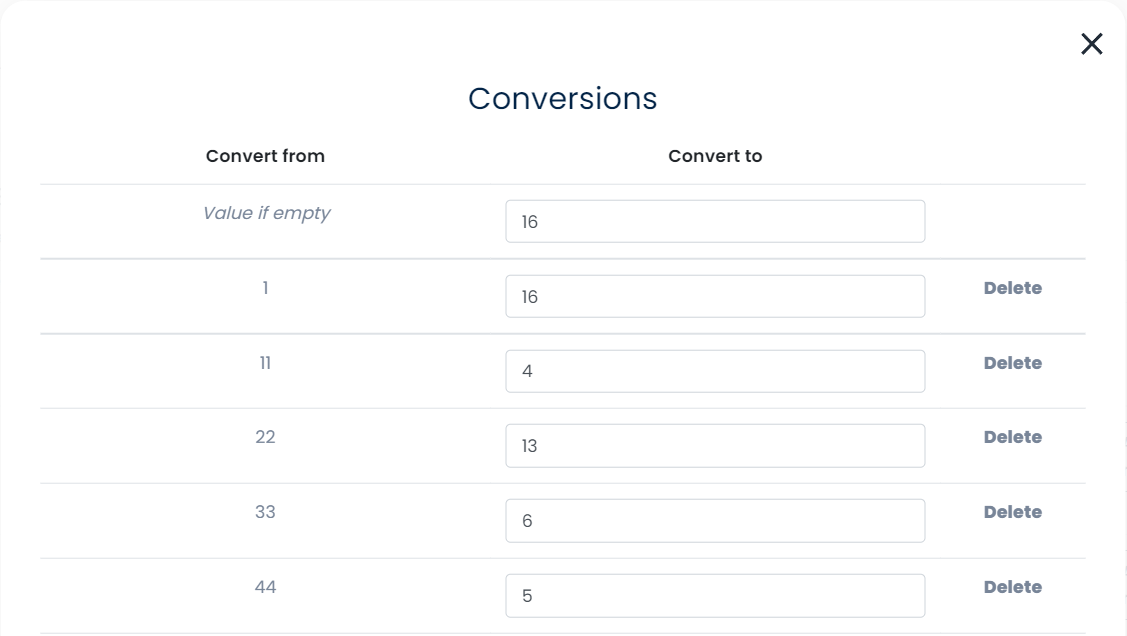

3. Conversions
Lastly, it is also possible to set up Conversions. This is used to change one value into something else. TIP: This could populate an empty field.
Just add a column or field in your system where the order data is and then once it arrives at Webshipper you are then able to distribute the values to Webshipper values.
In the example below we have specified in Navision a custom value. We now wish to point to our printer client IDs in Webshipper.
So depending on which Navision value we have - it should point to a specific Webshipper printer client id to print our shipments.
4. Example view
As you fill in all the fields and match the fields with rules, the example just below will illustrate how your order or shipment will look once your configuration is set up as you would like it to.
Remember some fields are required to fill in - see the full list here.
Required:
- OrderNumber
- Delivery - ContactName
- Delivery - Address 1
- Delivery - Zip code
- Delivery - City
- Delivery - Countrycode
- Billing - ContactName
- Billing - Address 1
- Billing - Zip code
- Billing - City
- Billing - Countrycode
- Droppoint - Company name
- Droppoint - Address 1
- Droppoint - Zip code
- Droppoint - City
- Droppoint - Countrycode
- Droppoint - Drop point id
- Quantity - must be 1 or above on duty shipments
All that is left now is to click Create CSV Configuration, and Upload CSV.
