This workflow demonstrates the API calls required to isolate specific shipments into a designated stack. By creating shipments, creating a target stack, and using the PATCH endpoint with the correct identifiers (ShpTag, StackCSID) you can effectively manage shipment grouping before further processing, like EDI generation.

Prerequisites:

• Access to the Ship API with valid credentials (Client ID/Secret or Username/Password).
• The "Ship API - 2.0 Examples" Postman collection.
• A configured environment. See the article about Postman on how to set up the environment:
  Postman Collection
• Successful authentication (run the appropriate request in the "Authorization" folder).

Workflow Steps:

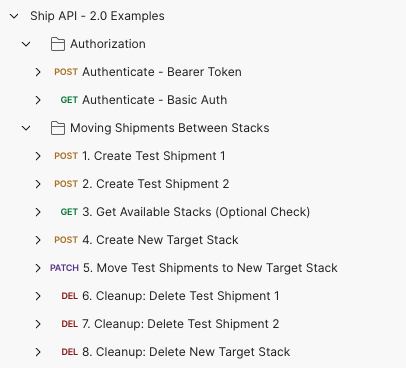

1. Create Test Shipments (Requests: 1. Create Test Shipment 1, 2. Create Test Shipment 2):
   • Action: Submit new shipments using the POST /shipServer/{{ID}}/shipments endpoint.
   • Why: You need existing shipments to move. When created, they typically land in a default stack associated with the chosen product/subcarrier.
   • Key Output: Note the ShpTag (unique shipment identifier) returned for each shipment.
2. (Optional) Get Available Stacks (Request: 3. Get Available Stacks (Optional Check)):
   • Action: Retrieve a list of all existing stacks using GET /shipServer/{{ID}}/stacks.
   • Why: To see current stacks and their StackCSIDs before creating a new one or deciding on an existing target stack.
3. Create New Target Stack (Request: 4. Create New Target Stack):
   • Action: Create a new, empty stack using POST /shipServer/{{ID}}/stacks. You need to provide the SubcarrierConceptID (found in the shipment creation response or Get Stacks response) and a desired StackName.
   • Why: To create a specific destination for the shipments you want to move.
   • Key Output: Note the StackCSID (unique stack identifier) of the newly created stack.
4. Move Shipments (Request: 5. Move Test Shipments to New Target Stack):
   • Action: Update the stack assignment for specific shipments using PATCH /shipServer/{{ID}}/stacks/shipments.
   • Why: This is the core step where shipments are moved.
   • Key Inputs: Provide the target StackCSID (from step 3) and an array of ShipmentTags (from step 1) for the shipments you want to move.
5. Cleanup (Requests: 6. Cleanup..., 7. Cleanup..., 8. Cleanup...):
   • Action: Delete the test shipments (DELETE /shipServer/{{ID}}/shipments/:shipmentTag) and the newly created stack (DELETE /shipServer/{{ID}}/stacks/:stackCSID).
   • Why: To remove temporary test data from the system after verifying the move operation.
