In this appendix, you'll find an overview of the objects and fields used with Shipment Server API.

Shipment Objects
- Address
- Lines
- LineUnit
- Package
- Reference
- ShpConnection
- Detail
- Row
- DetailGroup
- Amount
- Message
- DangerousGoods
- CSEvent
- Label
Options Object
Enums
- AddressKind
- ShipmentKind
- ReferenceKind - shipment
- ReferenceKind - lines
- ShipmentAmountKind
- ShipmentMessageKind
- CarrierPayer
- ShipmentTemperature
- DGClass
- DGKind
- DGMarinePollutant
- DGPackingGroup
- DetailGroupKind
- DetailKind
- ShipmentConnectionKind
- ConsignorEventKind
Currency codes

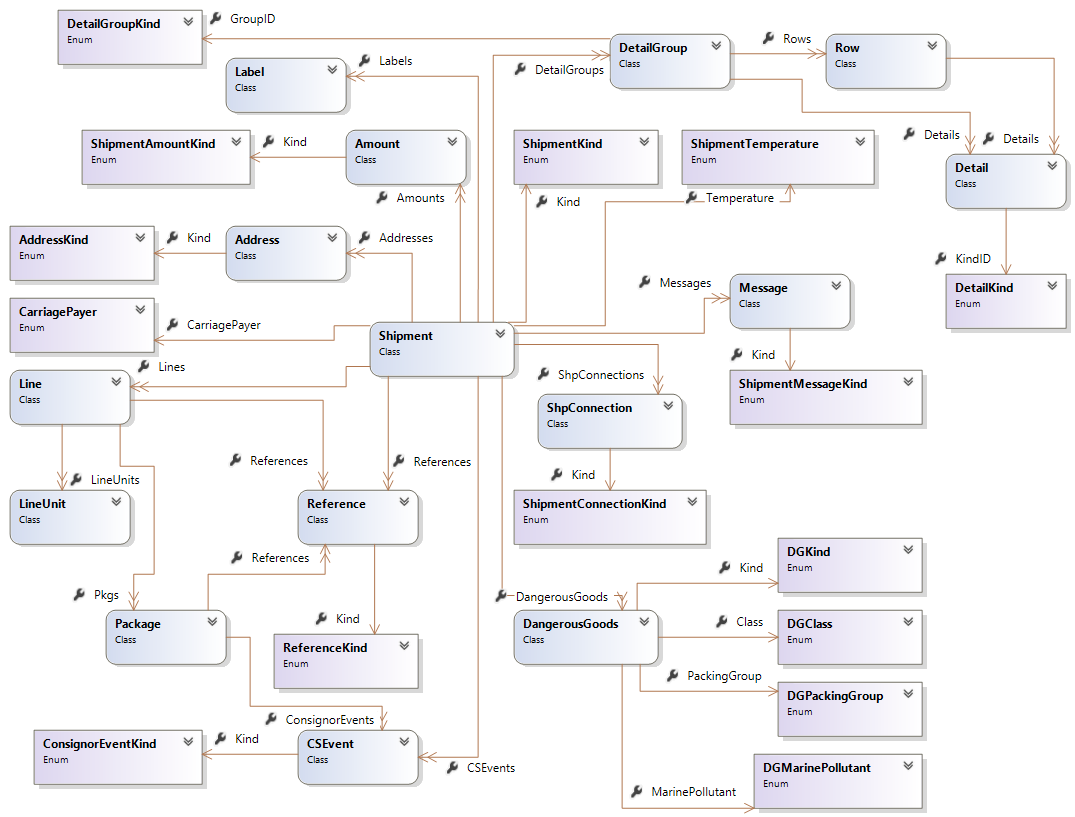

Diagram showing associations between classes

Tip: Use the Developer Tools to construct the correct json for your requests.

Shipment Object

The carrier, subcarrier and products are described using the concept ids, which are unique in the Shipment Server.

Name	Field type	Association / Description
ShpCSID	int	The unique ID of the shipment in Shipment Server. Not used in request.
ShpESID	Int	Database ID. Not needed in request.
InstallationID	string	The unique ID of Shipment Server installation. Not needed in the request.
PhysicalInstallationID	string	ID in database. Not needed in the request.
Kind	enum	ShipmentKind
ShpNo	string	Shipment Number
OverrideShpNo	string	When the shipment number (SSCC / EAN) is defined in ShpNo. Set value = 1 to tell Shipment Server to use this for the shipment rather than generate it at server side.
OrderNo	string	Order Number
PickupDt	DateTime	Pickup Date
LabelPrintDt	DateTime	Timestamp of the moment when the label was printed. Not used in request.
TransmitDt	DateTime	Timestamp of the moment when the shipment was transmitted. Not used in request.
ImportDt	DateTime	Timestamp of the moment when the shipment was Imported. Not used in request.
ExpireDt	DateTime	Timestamp of the moment when the shipment expires.
SubmitDt	DateTime	Timestamp of the moment when the shipment was submitted. Not used in request.
Weight	int	Not used in request
DimensionalWeight	int	Not used in request
Height	int	Not used in request
Length	int	Not used in request
Width	int	Not used in request
ActorCSID	int	The actor under which the shipment is saved
StackCSID	int	Stack Id for the stack to place the shipment in. Default stack will be used if the StackCSID is left out in the request.
BatchCSID	int	Not used in request
BatchDate	DateTime	Not used in request
ComebackParentCSID	int	The ShpCSID of the comeback shipment. Not used in the request.
GroupParentCSID	int	Not used in request
BulksplitMainCSID	int	Not used in request
Temperature	enum	ShipmentTemperature Not used in the request.
CarriagePayer	enum	CarriagePayer Not used in the request.
CarrierConceptID	int	Not used in request
SubcarrierConceptID	int	Not used in request
ProdConceptID	int	The uniq id for a carriers product, this would be the same across all Consignor applications.
ProdCSID	int	Database Id for a product, used for custom carriers as they do not have ProdConceptID. It could also be used instead if ProdConceptID on concept carriers. But you do not need to use both ProdCSID and ProdConceptID in a request.
Loadmeter	int	Not used in request
Barcode1	string	Not used in request
Barcode2	string	Not used in request
OriginPostcode	string	Not used in request
OriginTerminal	string	Not used in request
PickupTerminal	string	Picked from the server if excluded from the request.
AgentNo	string	Picked from the server if excluded from the request.
PayerAccountAtCarrier	string	Picked from the server if excluded from the request.
SenderAccountAtCarrier	string	Picked from the server if excluded from the request.
SenderAccountAtBank	string	Picked from the server if excluded from the request.
InsuranceGroup	int	Not used in request
ReturnPackaging	int	Not used in request
LabelsCount	int	Not used in request
FreightBillsCount	int	Not used in request
Services	Array int
Addresses	Array	Address
Lines	Array	Goods Lines
References	Array	Reference
ShpConnections	Array	ShpConnection Not used in request.
DetailGroups	Array	DetailGroup
Amounts	Array	Amount
Messages	Array	Message
DangerousGoods	Array	DangerousGoods
CSEvents	Array	CSEvent Not used in request.
Labels	Array	Label Not used in request.

Address

Included in the Addresses array in the Shipment object. Please note that some carriers have requirements when it comes to correct address information, e.g., upper/lower case requirements, postcode formats, etc.

Name	Field type	Association / Description
Kind	enum	AddressKind
Name1	string
Name2	string
Street1	string
Street2	string
State	string
PostCode	string
City	string
POBox	string
POPostCode	string
POCity	string
Phone	string
Mobile	string
Email	string
Attention	string
CustNo	string
Fax	string
CountryCode	string	ISO 3166 country code, 2 letters (DK, NO, etc.)
Province	string
ERPRef	string
OpeningHours	string
VATNo	string
VOECNumber	string

Lines

Included in the Lines array in the Shipment object

Name	Field type	Association / Description
Number	int	Number of packages (see implementation section )
LineWeight	int	(gram)
PkgWeight	int	Package Weight (gram)
DimensionalWeight	int
Height	int	(mm)
Length	int	(mm)
Width	int	(mm)
LineVol	long	(mm3)
PkgVol	long	Package Volume (mm3)
Loadmeter	int	(mm)
GoodsTypeID	int
GoodsTypeName	string
GoodsTypeKey1	string
GoodsTypeKey2	string
RecycleCount	int
RecycleTypeID	int
RecycleTypeName	string
LineUnits	Array	LineUnit
Pkgs	Array	Package
References	Array	Reference

LineUnit

Included in the LineUnits array in the Line object.

Name	Field type	Description
Name	string
KindID	enum
Count	double
Weight	int
Vol	int	Volume

Package

Included in the Pkgs array in the Line object

Name	Field type	Association / Description
PkgCSID	int	Package Id
ItemNo	int
PkgNo	string	Package number
Barcode1	string
Barcode2	string
References	Array	Reference
ConsignorEvents	Array	CSEvent

Reference

Included in the References arrays in the Shipment object and the Lines object

Name	Field type	Association / Description
Kind	enum	ReferenceKind
Value	string

ShpConnection

included in the ShpConnections array in the Shipment object

Name	Field type	Association / Description
Kind	enum	ShipmentConnectionKind
ChildCSID	int

Detail

included in the Details array in the Row and DetailGroup objects)

Name	Field type	Association / Description
KindID	enum	DetailKind
Value	string

Row

Included in the Rows array in the DetailGroup object

Name	Field type	Association / Description
Details	Array	Detail

DetailGroup

Included in the DetailGroups array in the Shipment object

Name	Field type	Association / Description
GroupID	enum	DetailGroupKind
Rows	Array	Row
Details	Array	Detail

Amount

Included in the Amounts array in the Shipment object

Name	Field type	Association / Description
Kind	enum	ShipmentAmountKind
CurrencyCode	string
Value	double

Message

Included in the Messages array in the Shipment object

Name	Field type	Association / Description
Kind	enum	ShipmentMessageKind
Text	string

DangerousGoods

Included in the DangerousGoods array in the Shipment object

Name	Field type	Association / Description
AdditionalHandlingInformation	string
ADRtankSpecialProvisions	string
ADRtankTankCode	string
ArticleNo	string	Mandatory in DG Office
ArticleName	string
AutoSummarizeMass	string
Class	enum	DGClass
Classification	string
ClassName	string
Count	int	Mandatory in DG Office
DeclarantName	string	Mandatory in DG Office
Description	string
DGMId	string
EMSNo	string
EMSProc	string
ExceptedQuantities	string
FlashPoint	string
GoodsLineID	int	GoodsLineID or GoodsLineNo is mandatory
GoodsLineNo	int	GoodsLineID or GoodsLineNo is mandatory
GrossWeight	int
IdentificationNo	string
ItemGrossWeight	bigint
ItemNetWeight	bigint
Kind	enum	DGKind
KindName	string
KitAmount	int
Labels	string
LimitedQuantities	string
LQCount	int	Limited Quantity count
LQGrossWeight	int	Limited Quantity weight
MarinePollutant	enum	DGMarinePollutant
MfagNo	string
MixedPackingProvision	string
Name	string
NameRoad	string
NameSea	string
NEQ	decimal
NetWeight	int
NOS	string
OuterPackingAmount	int	Used in DG Office
OuterPackingBundleID	int	Used in DG Office
OuterPackingType	string	Used in DG Office
OuterPackingTypeID	string	Used in DG Office
PackingGroup	enum	DGPackingGroup
PackingGroupName	string
PackingInstructions	string
PackingTypeID	int
PackingTypeKey	string
PackingTypeName	string
PageNo	string
Point	decimal
PortTankBulkContInstructions	string
PortTankBulkContSpecialProvisions	string
SecondaryClasses	string
ShipperReference	string
ShortName	string
SpecialPackingProvision	string
SpecialProvisions	string
SpecialProvisionsBulk	string
SpecialProvisionsHandling	string
SpecialProvisionsOperation	string
SpecialProvisionsPackages	string
StowingCategory	string
SubsidiaryRisk	string
TARE	int
TotalGross	int
TransportCategory	string
TransportInTank	string
TransportMode	string	Mandatory in DG Office
TransportModeName	string
UN	int
UnitOfMeasure	string
UnitOfMeasureName	string
Vehicle	string
Vol	int

CSEvent

Included in the CSEvents array in the Shipment object)

Name	Field type	Association / Description
Kind	enum	ConsignorEventKind
Date	string
User	string

Label

Included in the Labels array in the Shipment object, if requested using the Label option

Name	Field type	Value / Description
Type	string	12 (EPL - EPL label) 13 (ZPL or ZPLGK- ZPL label) 10 (PNG - PNG label) 4 (PDF - PDF label) 16 (DATAMAXLP2 - Datamax label)
Content	string	The content of the label, encoded as Base64

Options Object

The Options object is an optional JSON string that contains options when submitting a POST request. It is not included in the main shipment JSON object, but it is a separate JSON string.

Name	Field type	Value
Command	string	Labels
Labels	string	none - Returns no labels (default value) EPL - Returns EPL label, suitable for printers like LP2844, GK420D, ZM400 and others that is compatible with EPL ZPL - Returns ZPL label with top margine 30(LT30) suitable for LP2844-Z printers ZPLGK - Returns ZPL label with top margine 0(LT0), suitable for printers like GK420D, ZM400 and others that is compatible with ZPL II PNG - Returns label as PNG image PDF - Returns label as PDF DATAMAXLP2 - Returns label for Datamax printers Note: Labels can only be returned if the Command is SubmitShipment or ReprintLabels. E.g {Labels: PNG}
PriceCalculation	1 or 0	1 returns the price from price calculation activated on the product. If no price calculation has been activated on the product, no price will be returned using this option.

Enums

AddressKind

ID	Name	Description
0	eSakUnknown
1	eSakReceiver
2	eSakSender
3	eSakPickUp
4	eSakPayer
5	eSakBuyer
6	eSakTemporary
7	eSakMessage
8	eSakForwarder
9	eSakReturnTo
10	eSakDropPoint
11	eSakDepot
12	eSakComeback
13	eSakBroker
14	eSakDelivery
15	eSakSortTo
16	eSakImport
18	eSakSeller

ShipmentKind

ID	Name	Description
0	eSkUnknown
1	eSkNormal
2	eSkComeback
3	eSkGroup

ReferenceKind (shipment)

Used in the References array in the Shipment object.

ID	Name	Description
0	eSrkUnknown
2	eSrkCodReference
4	eSrkJobNumber
5	eSrkProjectName
6	eSrkReceiverAccountAtSender
7	eSrkReceiverReference
9	eSrkWantedDeliveryTime
10	eSrkRequiredDeliveryTime
11	eSrkReceiverAccountAtCarrier
12	eSrkSenderReference
14	eSrkOver
16	eSrkBookingReference
18	eSrkInsuranceCategory
19	eSrkInsurancePolicyNumber
20	eSrkDeliveryConditions
21	eSrkDeliveryInstructions
25	eSrkGoodsKind
27	eSrkAttention
29	eSrkKID
30	eSrkInsuranceContent
31	eSrkInsuranceSenderEmail
32	eSrkOrderNumberAdditional
33	eSrkCrossDockingID	This is the RECEIVERs cross docking ID
34	eSrkRoutingCode
35	eSrkDPDService
36	eSrkDPDOSort
37	eSrkDPDDSort
38	eSrkDPDLot
39	eSrkDPDServiceMark
40	eSrkDPDServiceInfo
41	eSrkDPDVersion
42	eSrkDPDDDepot
43	eSrkDPDBarCode
44	eSrkDPDDestinationText
45	eSrkDPDServiceCountryZIP
46	eSrkProductSpecialName
47	eSrkProductSpecialLogo
48	eSrkProductFeatures
49	eSrkLabelVersion
50	eSrkDHLCMRText
51	eSrkCodeLabel
52	eSrkPackageWeightLogo
53	eSrkImportPrinterKey
54	eSrkCODAcountType
55	eSrkCODAccountIsOCR
56	eSrkRoutingCode2
57	eSrkServiceCode
58	eSrkPayerCode
59	eSrkCODCode
60	eSrkPaymentReference
61	eSrkActorAlias
62	eSrkCarrierCode
63	eSrkCustomField1
64	eSrkCustomField2
65	eSrkCustomField3
66	eSrkCustomField4
67	eSrkCustomField5
68	eSrkCustomField6
69	eSrkCustomField7
70	eSrkCustomField8
71	eSrkCustomField9
72	eSrkCustomField10
73	eSrkPayerAgentNo
74	eSrkListOfContentsNo
75	eSrkServiceInformation
76	eSrkRoutingCode3
77	eSrkAirportCodeSender
78	eSrkAirportCodeReceiver
79	eSrkSenderPalletAccount
80	eSrkReceiverPalletAccount
81	eSrkInvoiceCustomsCode
82	eSrkCODAccountIBAN
83	eSrkCODAccountBIC
84	eSrkCustomField11
85	eSrkCustomField12
86	eSrkCustomField13
87	eSrkCustomField14
88	eSrkCustomField15
89	eSrkCustomField16
90	eSrkCustomField17
91	eSrkCustomField18
92	eSrkCustomField19
93	eSrkCustomField20
94	eSrkInternal1	Internal - should never go to export/import/gui
95	eSrkInternal2	Internal - should never go to export/import/gui
98	eSrkShipmentCarrierSpecific1
99	eSrkShipmentCarrierSpecific2
100	eSrkShipmentCarrierSpecific3
101	eSrkShipmentCarrierSpecific4
102	eSrkShipmentCarrierSpecific5
108	eSrkPickupStartDatetime	YYYY-MM-DDThh:mm:ss or YYYY-MM-DD
109	eSrkPickupEndDatetime	YYYY-MM-DDThh:mm:ss or YYYY-MM-DD
110	eSrkDeliveryStartDatetime
111	eSrkDeliveryEndDatetime
112	eSrkRoutingTableID1
113	eSrkRoutingTableID2
114	eSrkRoutingTableID3
115	eSrkRoutingCode4
116	eSrkRoutingCode5
117	eSrkRoutingCode6
118	eSrkRoutingCode7
119	eSrkRoutingCode8
120	eSrkRoutingTableID4
121	eSrkRoutingTableID5
122	eSrkRoutingTableID6
123	eSrkRoutingTableID7
124	eSrkRoutingTableID8
125	eSrkLoadedFromWebERP
126	eSrkSchenkerSEOnly_UccEan128_FNC1
127	eSrkCarrierSpecificBlob
128	eSrkAdditionalReceiverReference
134	eSrkSelectedReference
135	eSrkBulksplitShipmentNumber
136	eSrkErrorLabelData
137	eSrkCheckoutDeskId
138	eSrkThirdPartyInsurancePremium
139	eSrkThirdPartyInsuranceContents
140	eSrkThirdPartyInsuranceEmail
141	eSrkThirdPartyInsuranceTermsAccepted	Internal - should never go to export/import/gui
142	eSrkThirdPartyInsuranceStatus	Internal - should never go to export/import/gui
143	eSrkESIID
144	eSrkProductFeaturesV2
145	eSrkFactoryDefinedReference
146	eSrkShipmentKey
147	eSrkTrackingUrl
148	esrkDocumentUrl
149	esrkShipmentBookingNumber
150	eSrkShipmentBookingAlternativeService
151	eSrkLQCountSum
152	eSrkLQGrossWeight Sum
153	eSrkLineLQCountSum
154	eSrkLine LQGrossWeightSum
155	eSrkLineEDIfragtGLId
156	eSrkDropPointDepot
157	eSrkDropPointRoutingCode
158	eSrkCustomPackageCount
159	eSrkCustomPackageNumber
160	eSrkHiddenCustomField1
161	eSrkHiddenCustomField2
162	eSrkHiddenCustomField3
163	eSrkHiddenCustomField4
164	eSrkShipmentHiddenCarrierSpecificReference1
165	eSrkShipmentHiddenCarrierSpecificReference2
156	eSrkShipmentHiddenCarrierSpecificReference3
167	eSrkShipmentHiddenCarrierSpecificReference4
168	eSrkPrivateCustomField1
169	eSrkPrivateCustomField2
170	eSrkPrivateCustomField3
171	eSrkPrivateCustomField4
172	eSrkShipmentPrivateCarrierSpecificReference1
173	eSrkShipmentPrivateCarrierSpecificReference2
174	eSrkShipmentPrivateCarrierSpecificReference3
175	eSrkShipmentPrivateCarrierSpecificReference4
176	eSrkCustomField21
177	eSrkCustomField22
178	eSrkCustomField23
179	eSrkCustomField24
180	eSrkCustomField25
181	eSrkCustomField26
182	eSrkCustomField27
183	eSrkCustomField28
184	eSrkCustomField29
185	eSrkCustomField30
186	eSrkCustomField31
187	eSrkCustomField32
188	eSrkCustomField33
189	eSrkCustomField34
190	eSrkCustomField35
191	eSrkCustomField36
192	eSrkCustomField37
193	eSrkCustomField38
194	eSrkCustomField39
195	eSrkCustomField40
196	eSrkCustomField41
197	eSrkCustomField42
198	eSrkCustomField43
199	eSrkCustomField44
200	eSrkCustomField45
201	eSrkCustomField46
202	eSrkCustomField47
203	eSrkCustomField48
204	eSrkCustomField49
205	eSrkCustomField50
206	eSrkCustomField51
207	eSrkCustomField52
208	eSrkCustomField53
209	eSrkCustomField54
210	eSrkCustomField55
211	eSrkCustomField56
212	eSrkCustomField57
213	eSrkCustomField58
214	eSrkCustomField59
215	eSrkCustomField60
216	eSrkImportedPickupTerminal
217	eSrkCompletionAcrossProductsOriginId
218	eSrkCompletionOriginId	Internal, contains the completed shipment id, stored on the lines on completion references list
219	eSrkLineShipmentBooked
220	eSrkPortalNumber
236	eSrkMailbackSent
237	eSrkCarrierSpecificShipment6
238	eSrkCarrierSpecificShipment7
239	eSrkCarrierSpecificShipment8
240	eSrkCarrierSpecificShipment9
241	eSrkCarrierSpecificShipment10
242	eSrkCarrierSpecificShipment11
243	eSrkCarrierSpecificShipment12
244	eSrkCarrierSpecificShipment13
245	eSrkCarrierSpecificShipment14
246	eSrkCarrierSpecificShipment15
247	eSrkCarrierSpecificShipment16
248	eSrkCarrierSpecificShipment17
249	eSrkCarrierSpecificShipment18
250	eSrkCarrierSpecificShipment19
251	eSrkCarrierSpecificShipment20
252	eSrkPackageBookingReferenceNumber
253	eSrkBookingClosed
254	eSrkLeadShipmentNumber
255	eSrkLeadShipmentChildsCount
256	eSrkShipAdvisorReference
257	eSrkAdditionalImportPrinterKey
258	eSrkExportFolder
259	eSrkCarrierAccountAuthorizationNumber
260	eSrkLeadPackageNumber
261	eSrkLeadChildProductId
262	eSrkRoutingCode9
263	eSrkRoutingCode10
264	eSrkRoutingCode11
265	eSrkRoutingCode12
266	eSrkRoutingCode13
267	eSrkRoutingCode14
268	eSrkRoutingCode15
269	eSrkRoutingCode16
270	eSrkRoutingCode17
271	eSrkRoutingCode18
272	eSrkRoutingCode19
273	eSrkRoutingCode20
274	eSrkExportFtpProfile
275	eSrkLeadPackageCount
276	eSrkPrebookingEmailSenderAddress
277	eSrkPrebookingEmailSenderName
278	eSrkPrebookingEmailSubject
279	eSrkPortalBarcode1
280	eSrkPortalBarcode2
281	eSrkCSRServiceLevel
282	eSrkPackageCarrierSpecific1
283	eSrkPackageCarrierSpecific2
284	eSrkPackageCarrierSpecific3
285	eSrkPackageCarrierSpecific4
286	eSrkPackageCarrierSpecific5
287	eSrkLayoutLabelShowThousandSeparator
288	eSrkLayoutLabelThousandSeparator
289	eSrkLayoutLabelDecimalSeparator
290	eSrkPortalCustomPriceCalculationDetails
291	eSrk4PLProduct
292	eSrkCarrierEtaEarliestArrivalDateTime
293	eSrkCarrierEtaLatestArrivalDateTime
294	eSrkCarrierEtaDeliverySlaDuration
295	eSrkCarrierEtaDeliverySlaDeliveryHours
296	eSrkCarrierEtaPickupCutOffDateTime
297	eSrkPOD
298	eSrkLeadGroupId
299	eSrkOnGoingERP
300	eSrkLoadedFromERP
301	eSrkLineCarrierSpecific6
302	eSrkLineCarrierSpecific7
303	eSrkLineCarrierSpecific8
304	eSrkLineCarrierSpecific9
305	eSrkLineCarrierSpecific10
306	eSrkCarrierEtaServiceId
307	eSrkUsingPreAdvise
308	eSrkCustomerPromiseDate
309	eSrkCarrierAccountField5
310	eSrkCarrierAccountField6
311	eSrkCarrierAccountField7
312	eSrkCarrierAccountField8
313	eSrkCarrierAccountField9
314	eSrkDoorAccessCode
315	eSrkDPDO-Phone
316	eSrkDPDD-Phone
317	eSrkPortalOrphanInstallations
326	eSrkPackagePIN
327	eSrkPickupCode
328	eSrkPriceEstimateID
329	eSrkCarrierEtaStartIso
330	eSrkCarrierEtaEndIso
331	eSrkTODConditionCODE
332	eSrkDPDSSort
333	eSrkDPDNetworkCode
334	eSrkDPDDestinationBusinessUnit
335	eSrkDPDDestinationText2
336	eSrkDPDBarCode2
337	eSrkPersonalCustomerNumber
338	eSrkRefBookingDate
339	eSrkIncotermsLocation
340	eSrkQRCodeLink
341	eSrkDTPIORAccount
342	eSrkBirthDate
343	eSrkProofOfIdentity
344	eSrkPalletSpaces
345	eSrkLineShipmentPrebooked
346	eSrkPackageShipmentPrebooked
347	eSrkIOSSNumber
348	eSrkMinimumTemperature
349	eSrkMaximumTemperature
350	eSrkLineCODReference
351	eSrkCostCenter
352	eSrkIDExpiryDate
353	eSrkIDNumber
354	eSrkNotificationShip
355	eSrkNotificationException
356	eSrkNotificationDelivery
357	eSrkNotificationReturn
358	eSrkNotificationInTransit
359	eSrkCartonID
360	eSrkLanguageCode
361	eSrkOpenHoursMonday
362	eSrkOpenHoursTuesday
363	eSrkOpenHourWednesday
364	eSrkOpenHoursThursday
365	eSrkOpenHoursFriday
366	eSrkOpenHoursSaturday

ReferenceKind (Lines)

Used in the References array in the Lines object.

ID	Name	Description
23	eSrkContents	Lines - References
24	eSrkMarking	Lines - References
103	eSrkLineCarrierSpecific1	Lines - References
104	eSrkLineCarrierSpecific2	Lines - References
105	eSrkLineCarrierSpecific3	Lines - References
106	eSrkLineCarrierSpecific4	Lines - References
107	eSrkLineCarrierSpecific5	Lines - References
129	eSrkCustomLineField1	Lines - References
130	eSrkCustomLineField2	Lines - References
131	eSrkCustomLineField3	Lines - References
132	eSrkCustomLineField4	Lines - References
133	eSrkCustomLineField5	Lines - References
221	eSrkCustomLineField6	Lines - References
222	eSrkCustomLineField7	Lines - References
223	eSrkCustomLineField8	Lines - References
224	eSrkCustomLineField9	Lines - References
225	eSrkCustomLineField10	Lines - References
226	eSrkCustomLineField11	Lines - References
227	eSrkCustomLineField12	Lines - References
228	eSrkCustomLineField13	Lines - References
229	eSrkCustomLineField14	Lines - References
230	eSrkCustomLineField15	Lines - References
231	eSrkCustomLineField16	Lines - References
232	eSrkCustomLineField17	Lines - References
233	eSrkCustomLineField18	Lines - References
234	eSrkCustomLineField19	Lines - References
235	eSrkCustomLineField20	Lines - References

ShipmentAmountKind

ID	Name	Description
0	eSamkUnknown
1	eSamkPrice1
2	eSamkPrice2
3	eSamkPrice3
4	eSamkInsuranceValue
5	eSamkCodAmount
6	eSamkCarrierSpecifiedPrice
7	eSamkCarrierSpecifiedCodAmount
8	eSamkInsuranceAmountPerPackage
9	eSamkFixedPrice
10	eSamkInvoiceAmount
11	eSamkCodAmountOriginal
12	eSamkThirdPartyInsurance

ShipmentMessageKind

ID	Name	Description
0	eSmkUnknown
1	eSmkDriver
2	eSmkCarrier
3	eSmkReceiver

CarriagePayer

ID	Name	Description
0	eCpUnknown
1	eCpSender
2	eCpReceiver
3	eCpOther

ShipmentTemperature

ID	Name	Description
0	eStUnknown
1	eStNormal
2	eStHeat
3	eStCool

DGClass

ID	Name	Description
0	eDgCUnknown
1	eDgC_1
2	eDgC_2
3	eDgC_2_1
4	eDgC_3
5	eDgC_4_1
6	eDgC_4_2
7	eDgC_4_3
8	eDgC_5_1
9	eDgC_5_2
10	eDgC_6_1
11	eDgC_6_2
12	eDgC_7
13	eDgC_8
14	eDgC_9
15	eDgC_1_1A
16	eDgC_1_1B
17	eDgC_1_1C
18	eDgC_1_1D
19	eDgC_1_1E
20	eDgC_1_1F
21	eDgC_1_1G
22	eDgC_1_1J
23	eDgC_1_1L
24	eDgC_1_2B
25	eDgC_1_2C
26	eDgC_1_2D
27	eDgC_1_2E
28	eDgC_1_2F
29	eDgC_1_2G
30	eDgC_1_2H
31	eDgC_1_2J
32	eDgC_1_2K
33	eDgC_1_2L
34	eDgC_1_3C
35	eDgC_1_3G
36	eDgC_1_3H
37	eDgC_1_3J
38	eDgC_1_3K
39	eDgC_1_3L
40	eDgC_1_4B
41	eDgC_1_4C
42	eDgC_1_4D
43	eDgC_1_4E
44	eDgC_1_4F
45	eDgC_1_4G
46	eDgC_1_4S
47	eDgC_1_5D
48	eDgC_1_6N
49	eDgC_2_2
50	eDgC_2_3

DGKind

ID	Name	Description
0	eDgkADRRID
1	eDgkIMD
2	eDgLQ
3	eDgEQ

DGMarinePollutant

ID	Name	Description
0	edgmpUnknown
1	edgmpNone
2	edgmpIMDG
3	edgmpADR

DGPackingGroup

ID	Name	Description
0	eDgPgNone
1	eDgPgI
2	eDgPgII
3	eDgPgIII

DetailGroupKind

ID	Name	Description
0	DgrkUnknown
1	DgrkCustomsArticle
2	DgrkCustomsInfo
4	DgrkFedExCustomsInformation
5	DrgkDHLFiling
6	OrderData

DetailKind

ID	Name	Association / Description
0	DekUnknown
1	eDekArticleNo	DgrkCustomsArticle
2	eDekUnitValue	DgrkCustomsArticle
3	eDekTariffCode	DgrkCustomsArticle
4	eDekCountryOfOrigin	DgrkCustomsArticle
5	eDekQuantity	DgrkCustomsArticle
6	eDekUnitWeight	DgrkCustomsArticle
7	eDekDescrOfGoods	DgrkCustomsArticle
8	eDekUnitOfMeasure	DgrkCustomsArticle
9	eDekTotalWeight	DgrkCustomsArticle
10	eDekTotalValue	DgrkCustomsArticle
11	eDekVATSender	DgrkCustomsInfo
12	eDekVATReceiver	DgrkCustomsInfo
13	eDekVATBuyer	DgrkCustomsInfo
14	eDekOtherComments	DgrkCustomsInfo
16	eDekCustomsValue	DgrkCustomsArticle
17	eDekCustomsArticleCurrency	DgrkCustomsArticle
18	eDekCustomsArticleCommodityCode	DgrkCustomsArticle
19	eDekInvoiceNumber	DgrkCustomsInfo
20	eDekReasonForExport	DgrkCustomsInfo
21	eDekCustomsInfoCurrency	DgrkCustomsInfo
22	eDekDeclarationStatement	DgrkCustomsInfo
23	eDekCustomsInfoCommodityCode	DgrkCustomsInfo
24	eDekInvoiceDate	DgrkCustomsInfo
25	eDekTermsofShipment	DgrkCustomsInfo
26	eDekDiscount	DgrkCustomsInfo
27	eDekFreightCharges	DgrkCustomsInfo
28	eDekInsuranceCharges	DgrkCustomsInfo
29	eDekChargesValue	DgrkCustomsInfo
30	eDekChargesDesc	DgrkCustomsInfo
31	eDekBookingNumber	DgrkCustomsInfo
32	eDekNumberOfPieces	DgrkCustomsArticle
33	eDekContents	DgrkCustomsInfo
34	eDekGrossWeight	DgrkCustomsInfo
35	eDekTDocNo	DgrkCustomsInfo
36	eDekNettoWeight	DgrkCustomsArticle
174	eDekCustomsAmount	DgrkFedExCustomsInformation
175	eDekCustomsCurrency	DgrkFedExCustomsInformation
176	eDekVATBroker	DgrkCustomsInfo
177	eDekDescriptionOfGoods	DgrkCustomsInfo
178	eDekSpecialInstructions	DgrkCustomsInfo
179	eDekCustomsCreditorNo	DgrkCustomsInfo
180	eDekNumberOfItems	DgrkCustomsArticle
181	eDekTotalValue	DgrkCustomsInfo
182	eDekShippersEORI	DgrkCustomsInfo
183	eDekFDARegistration	DgrkCustomsInfo
184	eDekProductDescription	DgrkCustomsArticle
185	eDekProductComposition	DgrkCustomsArticle
186	eDekProductCode	DgrkCustomsArticle
187	eDekProductSize	DgrkCustomsArticle
188	eDekPreference	DgrkCustomsArticle
189	eDekProcedureCode	DgrkCustomsArticle
190	eDekSupplementaryUnit	DgrkCustomsArticle
191	eDekCertificatesCode	DgrkCustomsArticle
192	eDekCertificates	DgrkCustomsArticle
193	eDekGoodsLineNo	DgrkCustomsArticle
501	eDekFilingType	DrgkDHLFiling
502	eDekFTSR	DrgkDHLFiling
503	eDekINT	DrgkDHLFiling
504	eDekAES4EIN	DrgkDHLFiling
505	eDekUnitVolume	DgrkCustomsArticle
506	eDekGender	DgrkCustomsArticle
507	eDekConstruction	DgrkCustomsArticle
508	eDekFabricMarked	DgrkCustomsArticle
509	eDekFabricMutilated	DgrkCustomsArticle
510	eDekManufacturer	DgrkCustomsArticle
511	eDekProductionAddress	DgrkCustomsArticle
512	eDekProductionPostalCode	DgrkCustomsArticle
513	eDekProductionCity	DgrkCustomsArticle
514	eDekOrderTotalValue	DgrkOrderData
515	eDekOrderVAT	DgrkOrderData
516	eDekPurchaseURL	DgrkCustomsArticle
517	eDekWeightUOM	DgrkCustomsArticle
518	eDekExportLicense	DgrkCustomsInfo
519	eDekOriginCertificateNumber	DgrkCustomsInfo
520	eDekCustomsBulkID	DgrkCustomsInfo
521	eDekInvoiceSignature	DgrkCustomsInfo
522	eDekInvoiceSignatureDate	DgrkCustomsInfo
523	eDekFDANumber	DgrkCustomsArticle
524	eDekTransactionCode	DgrkCustomsInfo
525	eDekTransactionDescription	DgrkCustomsInfo
526	eDekImporterReferenceCode	DgrkCustomsInfo
527	eDekQuantityUnitCode	DgrkCustomsArticle
528	eDekQuantityUnitDescription	DgrkCustomsArticle
529	eDekNAFTAEligible	DgrkCustomsInfo
530	eDekFDAFood	DgrkCustomsInfo
531	eDekTextile	DgrkCustomsInfo
532	eDekPSTExempt	DgrkCustomsInfo
533	eDekCustomsClearanceInstructions	DgrkCustomsArticle
534	eDekCustomsDeclarationInformation	DgrkCustomsArticle
535	eDekAdditionalQuantity	DgrkCustomsArticle
536	eDekAdditionalQuantityType	DgrkCustomsArticle
537	eDekProductUsage	DgrkCustomsArticle
538	eDekBrandName	DgrkCustomsArticle
539	eDekClassification	DgrkCustomsArticle
540	eDekDocumentType	DgrkCustomsInfo
541	eDekDocumentId	DgrkCustomsInfo
542	eDekShipmentType	DgrkCustomsInfo
543	eDekGSTExemptionCode	DgrkCustomsInfo
544	eDekHandlingCharges	DgrkCustomsInfo
545	eDekArticleThumbnailURL	DgrkCustomsArticle
546	eDekArticleImageURLs	DgrkCustomsArticle
547	eDekMovementReferenceNumber	DgrkCustomsInfo
548	eDekInstallationCode	DgrkCustomsArticle
549	eDekInstallationCount	DgrkCustomsArticle
550	eDekInboundCommodityCode	DgrkCustomsArticle
551	eDekPickingListNumber	DgrkCustomsArticle
552	eDekDDSReferenceNo	DgrkCustomsArticle
553	eDekTARICDocumentCode	DgrkCustomsArticle

ShipmentConnectionKind

ID	Name	Description
0	eSckUnknown
1	eSckChildIsComeback
2	eSckChildIsGroupMember
4	eSckChildIsBulksplitSub
5	eSckChildIsLeadMember

ConsignorEventKind

ID	Name	Description
0	eSskUnknown
1	eSskCreatedByImport
2	eSskCreateByGUI
3	eSskCreateByAPI
4	eSskSubmitted
5	eSskPriceCalculated
6	eSskBatchCreated
7	eSskFreightBillPrinted
8	eSskPackageLabelPrinted
9	eSskChangedAfterPackageLabelPrinted
10	eSskDeletedBeforeBatchCreated
11	eSskDeletedAfterBatchCreated
12	eSskEdiFileCreated
13	eSskEdiFileTransmitted
14	eSskMailbackRequested
15	eSskMailbackSent
16	eSskTransmitRequested
17	eSskTransmitSucceeded
18	eSskTransmitFailed
19	eSskProductionDraft
20	eSskMailbackFailed
21	eSskMoving
22	eSskDelivered
23	eSskDocumentReprinted
24	eSskMailbackDeleted
25	eSskShipmentLabelPrinted
26	eSskPrintedInConline
27	eSskPrebookSucceeded
28	eSskPrebookFailed
29	eSSkUpdatedAfterSubmitted
30	eSSkShipmentCompleted

Currency codes

Use the corresponding value for the currency with the CurrencyCode variable in Amount to set the currency.

Value	ISO Code	Name
1	NOK	Norwegian Krone
2	DKK	Danish Krone
3	SEK	Swedish Krona
4	GBP	Pound Sterling
5	EUR	Euro
6	USD	US Dollar
7	AUD	Australian Dollar
8	HKD	Hong Kong Dollar
9	ISK	Iceland Krona
10	JPY	Yen
11	CAD	Canadian Dollar
12	CYP	Cyprus Pound (obsolete)
13	MTL	Malta Lira (obsolete)
14	SGD	Singapore Dollar
15	ZAR	Rand
16	CHF	Sweish Franc
17	THB	Baht
18	CZK	Czech Koruna
19	ZWL	Zimbabwe Dollar
20	BHD	Bahraini Dinar
21	AED	United Arab Emirates Dirham
22	PHP	Philippine Peso
23	INR	Indian Rupee
24	IDR	Indonesia Pupiah
25	ILS	New Israeli Sheqel
26	KES	Kenyan Shilling
27	CNY	Yuan Renminbi
28	KRW	Won
29	KWD	Kuwaiti Dinar
30	MXN	Mexican Peso
31	MAD	Moroccan Dirham
32	NZD	New Zealand Dollar
33	PKR	Pakistan Rupee
34	PLN	Zloty
35	QAR	Qatari Rial
36	RUB	Russian Ruble
37	SAR	Saudi Riyal
38	SKK	Slovenian Koruna (obsolete)
39	LKR	Sri Lanka Rupee
40	TWD	New Taiwan Dollar
41	TZS	Tanzanian Shilling
42	TND	Tunisian Dinar
43	TRY	Turkish Lira
44	HUF	Forint
45	EEK	Estonian Koruna (obsolete)
46	RON	Romanian Leu
47	BGN	Bulgarian Lev
48	EGP	Egyptian Pound
49	HRK	Kuna
50	LTL	Lithuania Litas (obsolete)
51	LVL	Latvia Lats (obsolete)
52	SIT	Slovenia Tolar (obsolete)
53	AFN	Afghani
54	ALL	Lek
55	AMD	Armenian Dram
56	ANG	Netherlands Antillian Guilder
57	AOA	Kwanza
58	ARS	Argentine Peso
59	AWG	Aruban Guilder
60	AZN	Azerbaijanian Manat
61	BAM	Convertible Mark
62	BBD	Barbados Dollar
63	BDT	Taka
64	BIF	Burundi Franc
65	BMD	Bermudian Dollar
66	BND	Brunei Dollar
67	BOB	Boliviano
68	BOV	Mvdol
69	BRL	Brazilian Real
70	BSD	Bahamian Dollar
71	BTN	Ngultrum
72	BWP	Pula
73	BYR	Belarussian Ruble
74	BZD	Belize Dollar
75	CDF	Congolese Franc
76	CLP	Chilean Peso
77	CLF	Unidad de Fomento
78	COP	Colombian Peso
79	COU	Unidad de Valor Real
80	CRC	Costa Rican Colon
81	CUP	Cuban Peso
82	CVE	Cape Verde Escudo
83	DJF	Djibouti Franc
84	DOP	Dominican Peso
85	DZD	Algerian Dinar
86	ERN	Nakfa
87	ETB	Ethiopian Birr
88	FJD	Fiji Dollar
89	FKP	Falkland Islands Pound
90	GEL	Lari
91	GHS	Ghana Cedi
92	GIP	Gibraltar Pound
93	GMD	Dalasi
94	GNF	Guinea Franc
95	GTQ	Quetzal
96	GWP	Guinea-Bissau Peso (obsolete)
97	GYD	Guyana Dollar
98	HNL	Lempira
99	HTG	Gourde
100	IQD	Iraqi Dinar
101	IRR	Iranian Rial
102	JMD	Jamaican Dollar
103	JOD	Jordanian Dinar
104	KGS	Som
105	KHR	Riel
106	KMF	Comoro Franc
107	KPW	North Korean Won
108	KYD	Cayman Islands Dollar
109	KZT	Tenge
110	LAK	Kip
111	LBP	Lebanese Pound
112	LRD	Liberian Dollar
113	LSL	Loti
114	LYD	Libyan Dinar
115	MDL	Moldovan Leu
116	MGA	Malagasy Ariary
117	MKD	Denar
118	MMK	Kyat
119	MNT	Tugrik
120	MOP	Pataca
121	MRU	Ouguiya
122	MUR	Mauritius Rupee
123	MVR	Rufiyaa
124	MWK	Kwacha
125	MYR	Malaysian Ringgit
126	MZN	Mozambique Metical
127	NAD	Namibia Dollar
128	NGN	Naira
129	NIO	Cordoba Oro
130	NPR	Nepalese Rupee
131	OMR	Rial Omani
132	PAB	Balboa
133	PEN	Nuevo Sol
134	PGK	Kina
135	PYG	Guarani
136	RWF	Rwanda Franc
137	SBD	Solomon Islands Dollar
138	SCR	Seychelles Rupee
139	SDG	Sudanese Pound
140	SHP	Saint Helena Pound
141	SLL	Leone
142	SOS	Somali Shilling
143	SRD	Surinam Dollar
144	STN	Dobra
145	SVC	El Salvador Colon
146	SYP	Syrian Pound
147	SZL	Lilangeni
148	TJS	Somoni
149	TMT	Turkmenistan New Manat
150	TOP	Pa'anga
151	TTD	Trinidad and Tobago Dollar
152	UAH	Hryvnia
153	UGX	Uganda Shilling
154	UYU	Peso Uruguayo
155	UYI	Uruguay Peso en Unidades Indexadas
156	UZS	Uzbekistan Sum
157	VEF	Bolivar
158	VND	Dong
159	VUV	Vatu
160	WST	Tala
161	YER	Yemeni Rial
162	ZMW	Zambian Kwacha
163	RSD	Serbian Dinar
164	XAF	CFA Franc BEAC
165	XOF	CFA Franc BCEAO
166	XCD	East Caribbean dollar
167	XPF	CFP Franc

Diagram showing associations between classes

nShift Help Center
